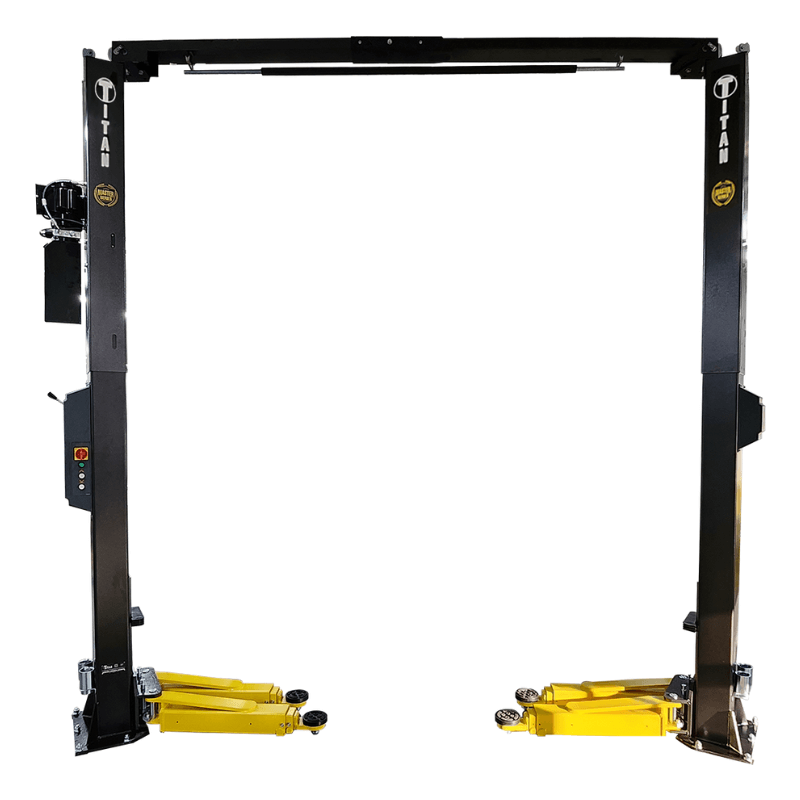

Titan HD2P-12KMSC 12,000lb 2 Post Lift - Master Series
SKU: TTN-HD2P-12KMSC

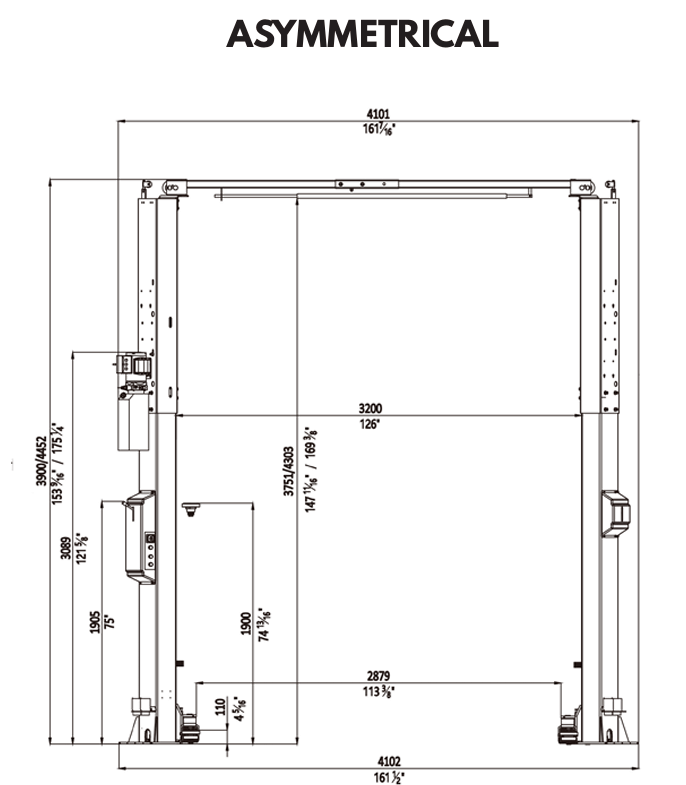

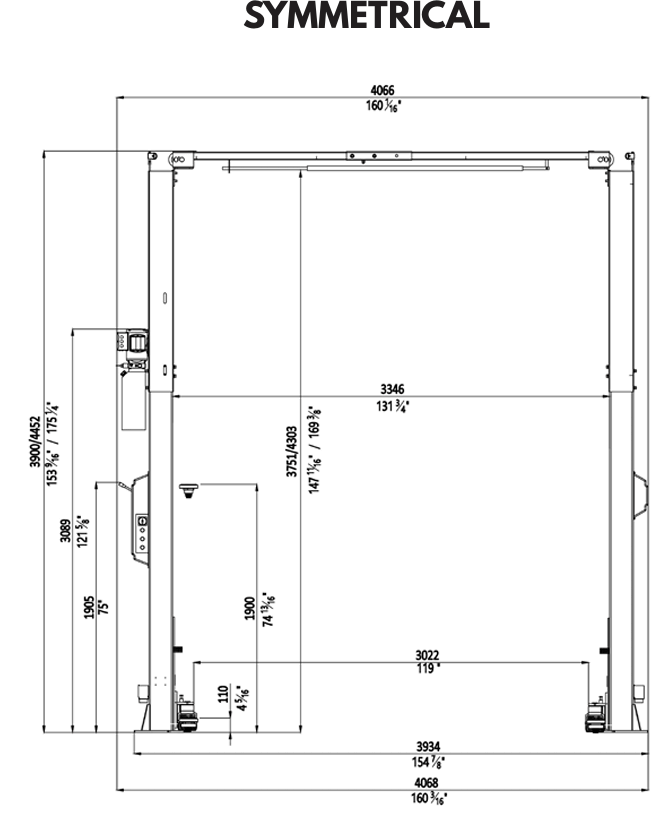

HD2P-12KMSC 12,000lb 2 Post Lift by Titan Looking for a heavy-duty 2-post lift that delivers unmatched strength, flexibility, and safety? The Titan HD2P-12KMSC Master Series 12,000 lb Two-Post Lift is engineered to meet the demands of both professional automotive shops and serious home enthusiasts. Built for superior performance, this lift features a 12,000 lb lifting capacity and direct-drive hydraulic cylinders for smooth, reliable operation. With the ability to configure the columns in either symmetric or asymmetric layouts, this lift easily adapts to various garage designs and vehicle types, making it a versatile solution for servicing everything from passenger cars to light trucks.
Rated for 12,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
12,000 lb lifting capacity built for dependable daily use
Manufacturer warranty included on every unit
Documented specifications you can verify before you buy
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Technical Specifications
Lifting Capacity |
12,000 lb |
Outside of Baseplates (Width) |
161-1/2” |
Inside of Columns (Width) |
126” |
Overall Width w/ Motor |
161-1/2” |
Drive-Thru Clearance |
113-3/8” |
Lifting Height |
4-5/16” – 74-13/16” |
Overall Height |
153-9/16” or 175-1/4” |

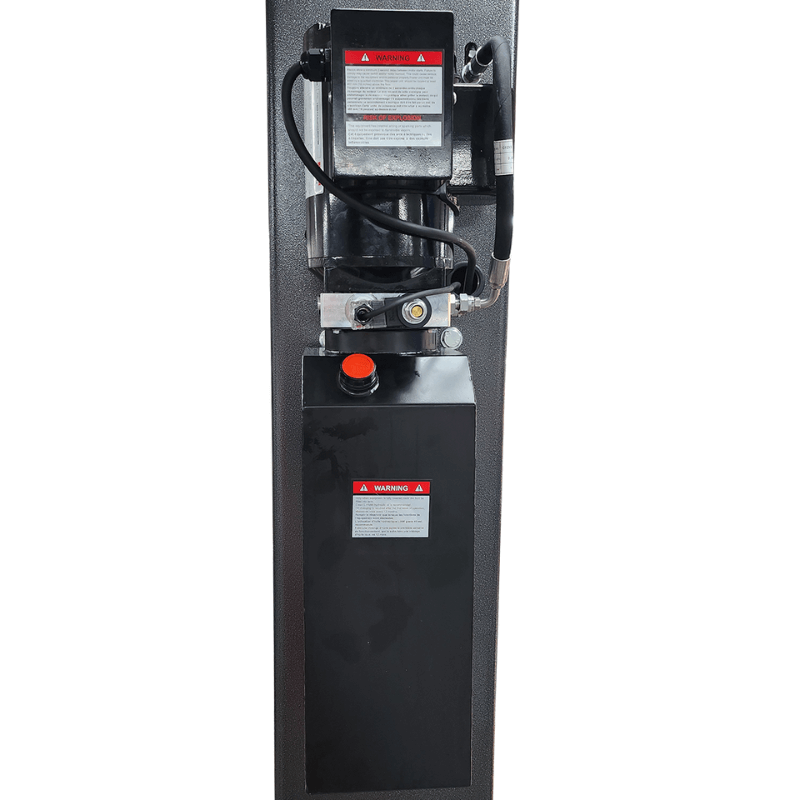

Power Unit |
220V, 60Hz, 1Ph, 2.2kW - Motor: 3 HP |
Shipping Dimensions |
113"L x 23"W x 47"H - 2,190lbs |
Concrete Requirements |
Minimum of 6"-3000psi |
Two lift height options |
154” or 176” |
Serviceable arm restraint locks |

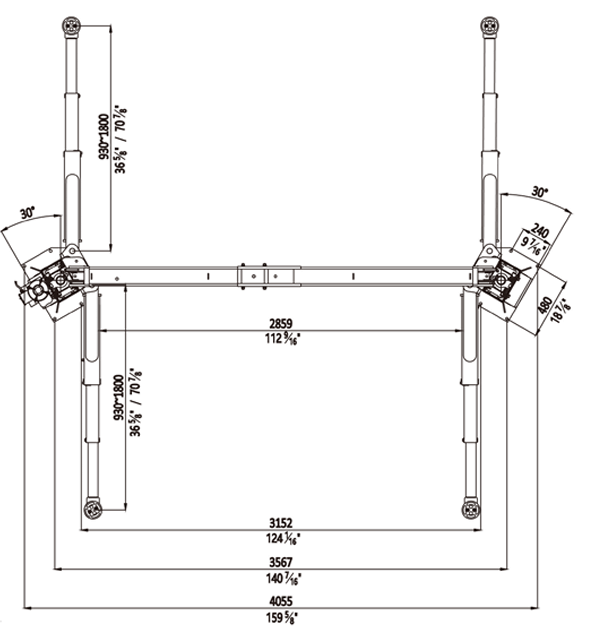

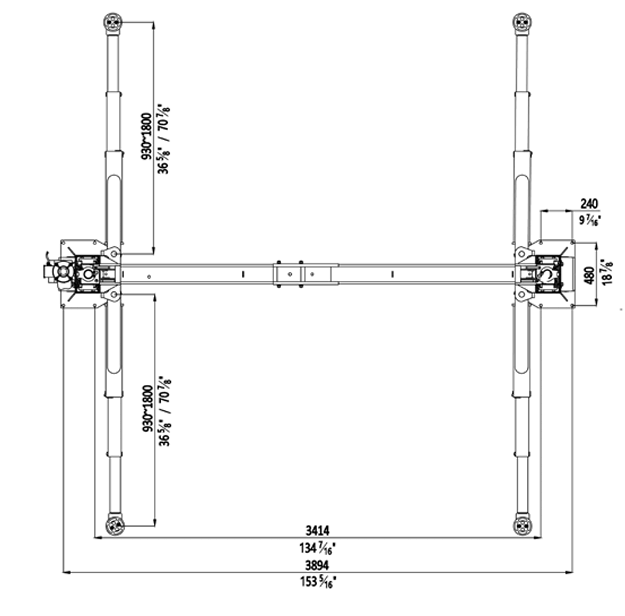

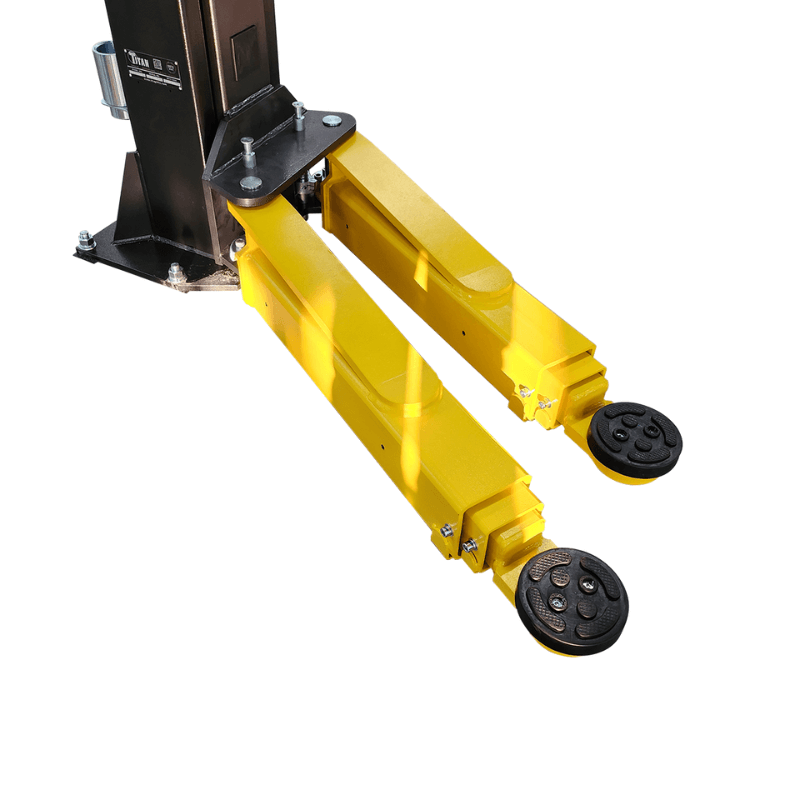

Four 3-stage lift arms for superior reach and versatility |
Powder-coated hammered dark finish |
5-Year Structural Warranty |
Nylon Slide Blocks |
Lifetime Warranty |
