TP10KAC-DX 10,000lb 2 Post Car Lift - ALI Certified
SKU: TP10KAC-DX
Ideal TP10KAC-DX 2 Post Lift Time to lighten your load with the TP10KAC-DX Car Lift! With its 10,000 lbs capacity and bi-symmetric arms, it's ready to bench press everything from pint-sized compacts to hefty pickup trucks. But here's where it really flexes its muscles: a not exactly lightning-fast 50-second rise time that'll make one-minute rise time jacks jealous, and a single-point lock release smoother than a well-oiled transmission. Worried about safety? This lift's got more protective features than a medieval fortress. Rubber door guards and heavy-duty arm restraints keep vehicles snug as a bug, while external hose guards fend off potential damage like a knight in shining armor.
Rated for 10,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features

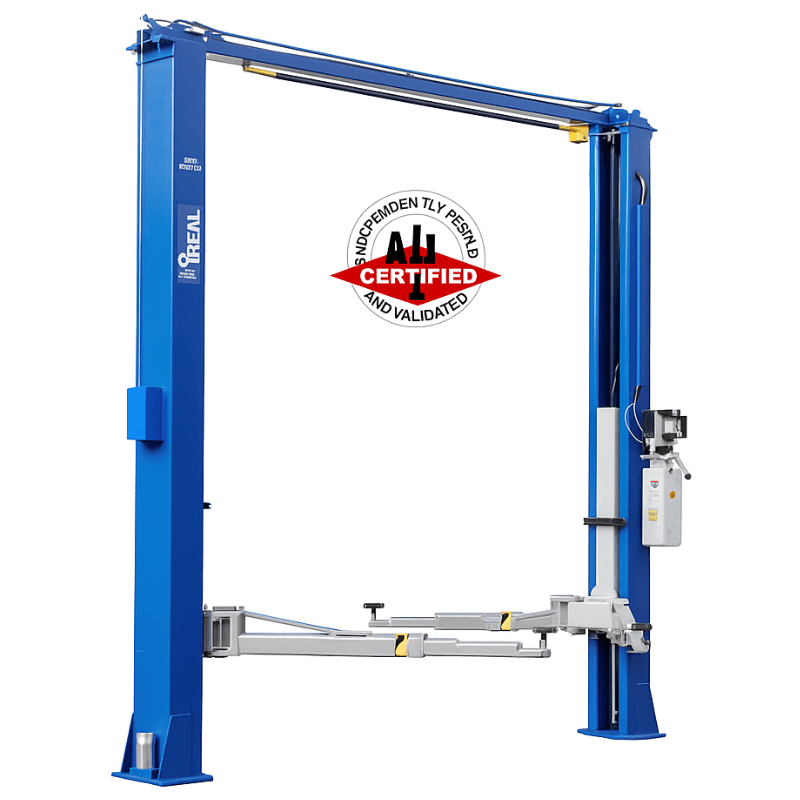

ALI certified
10,000 lbs lifting capacity

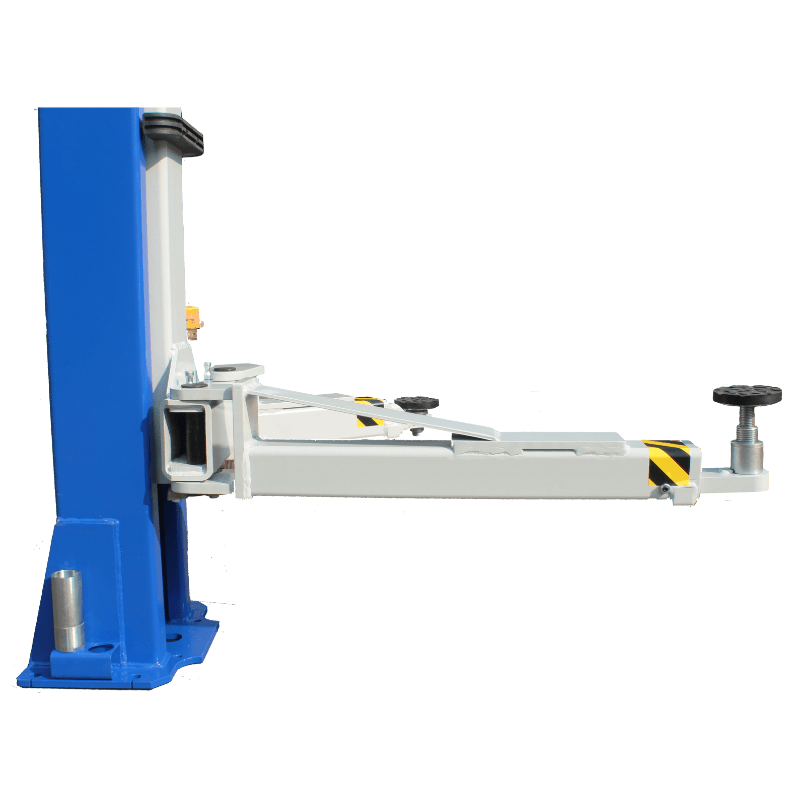

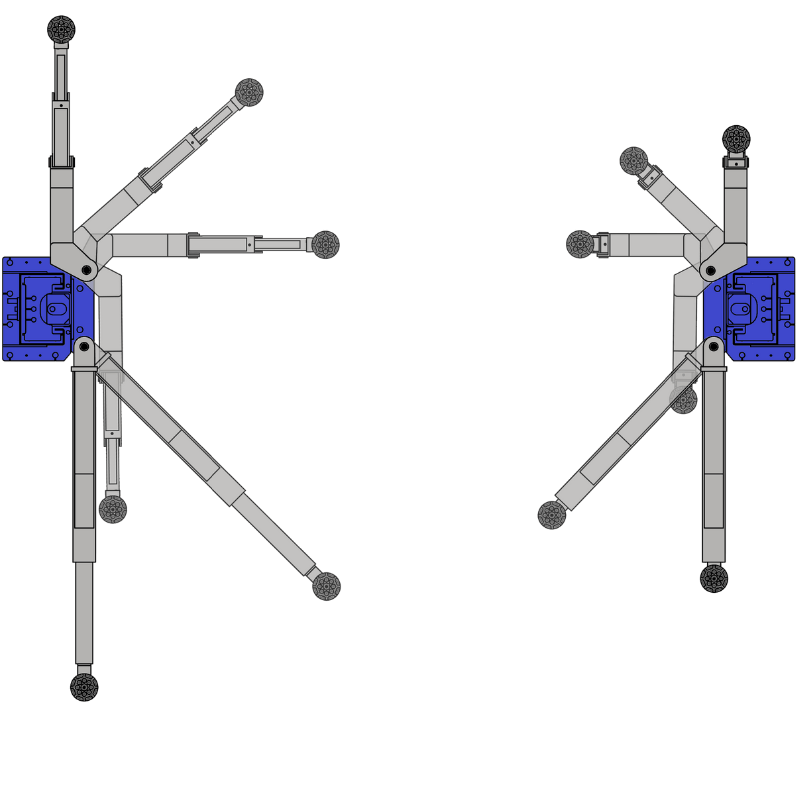

Bi-symmetric arm design
Rubber door guards

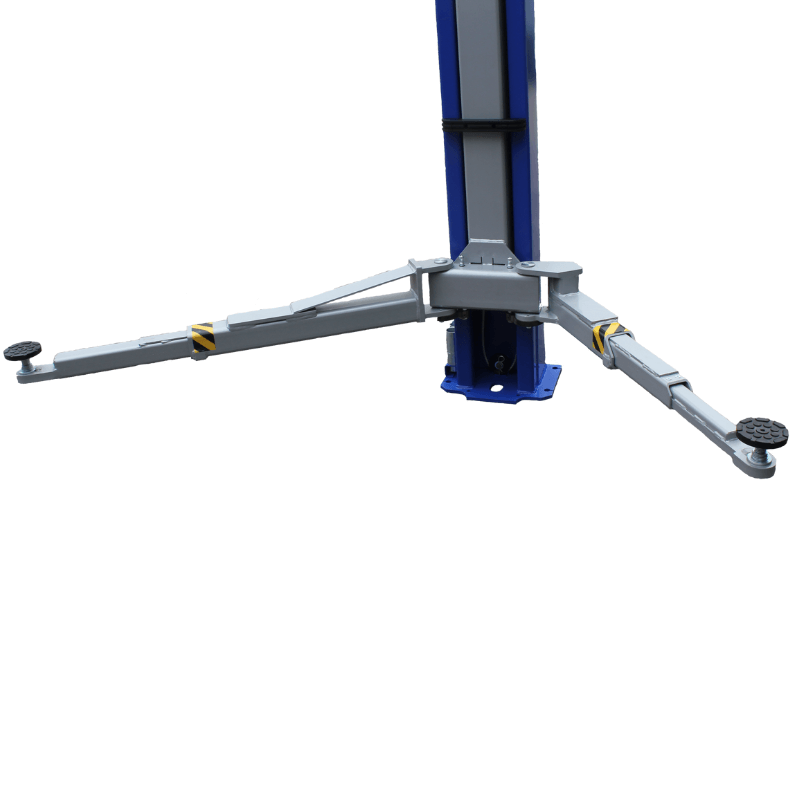

3-stage front arms

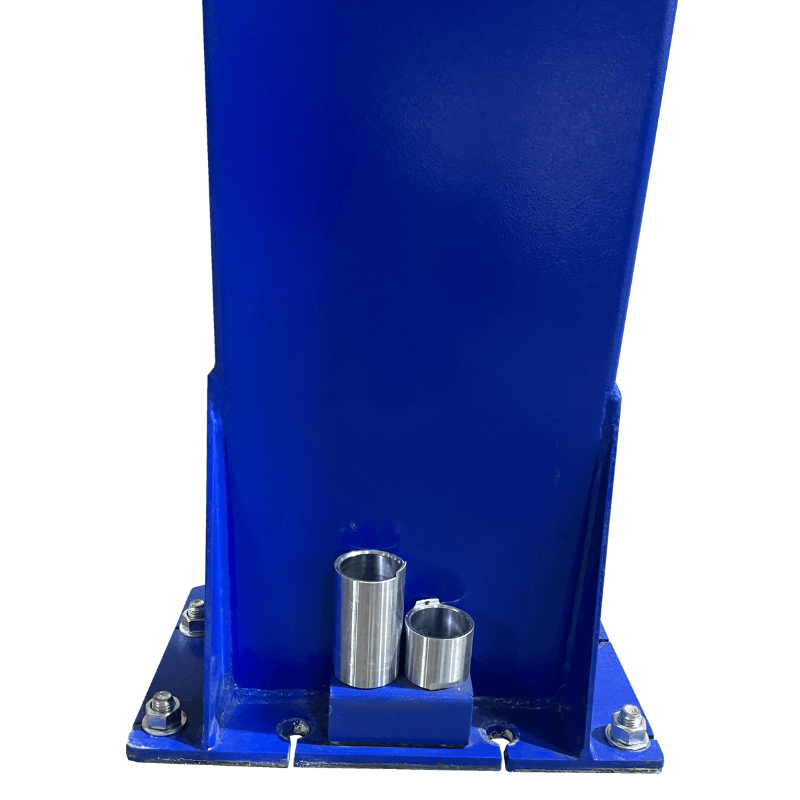

Single piece column

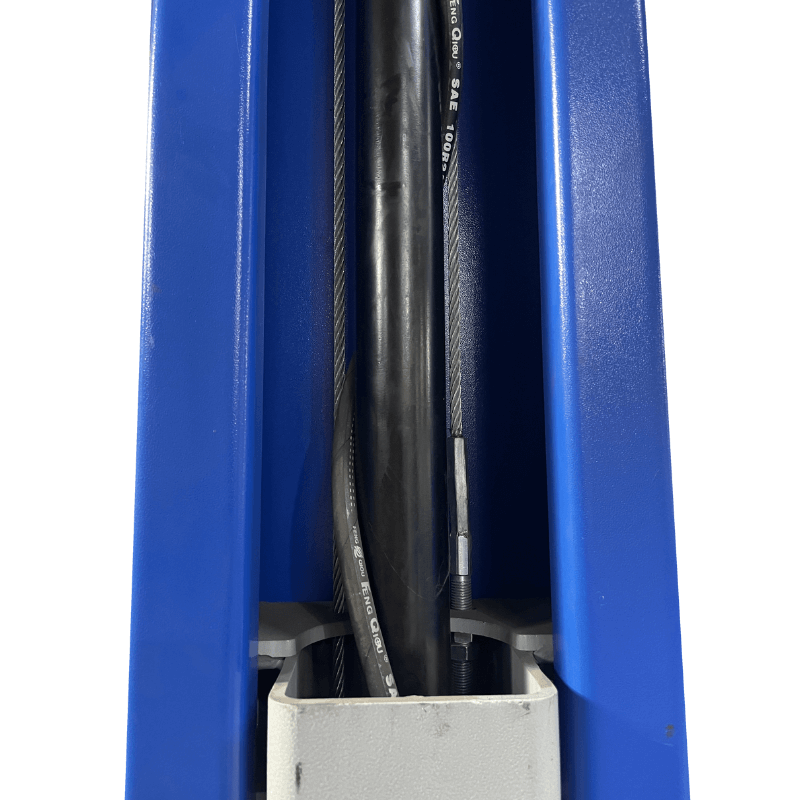

Direct drive pull cylinders

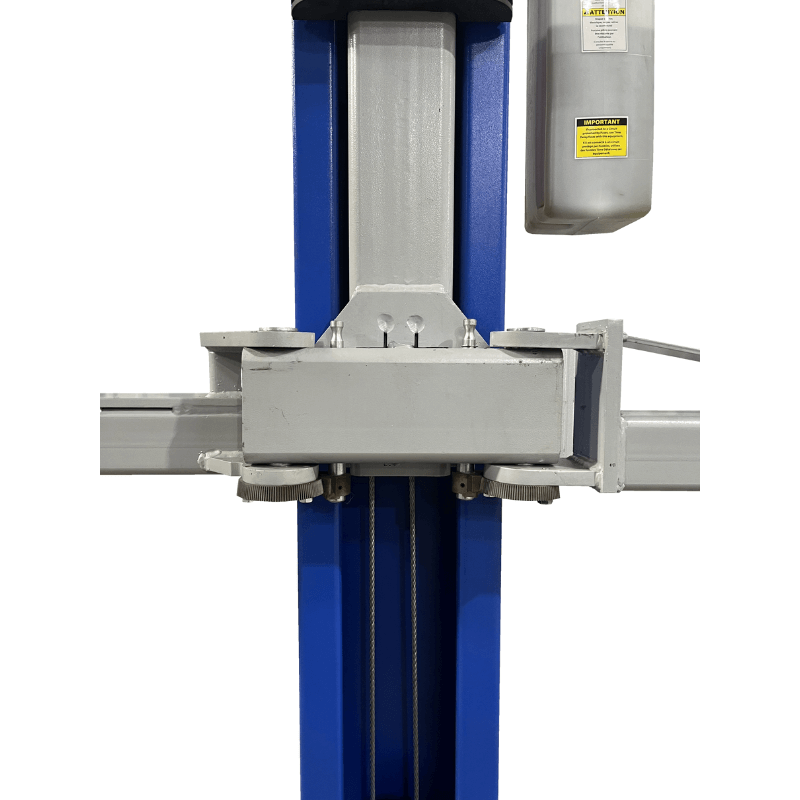

Single point lock release
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume

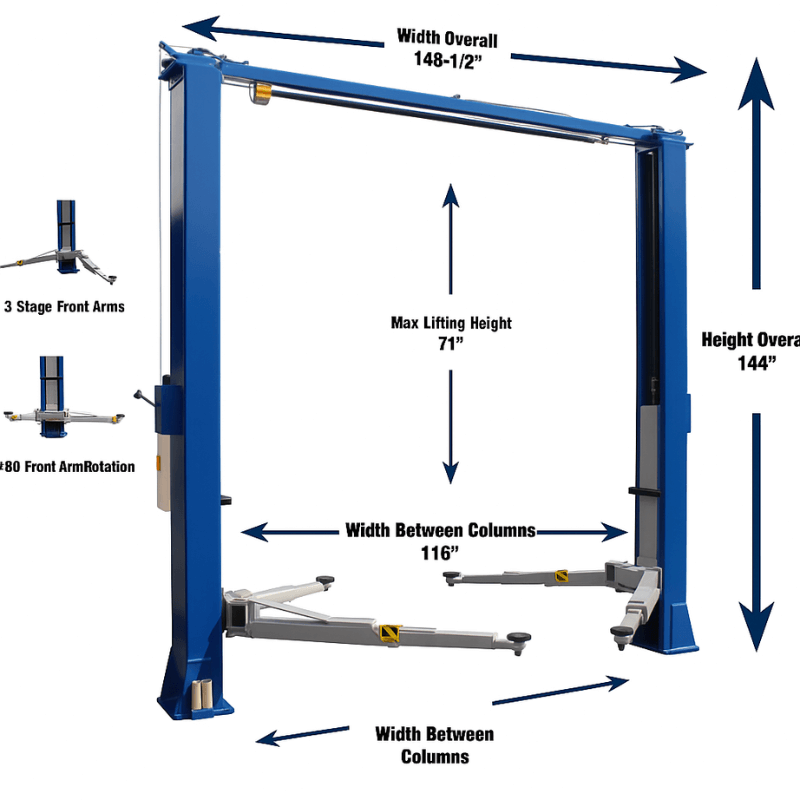

Technical Specifications
Overall width |
137 3/16″ |
Overall width with power unit |
145 1/2″ |
Overall height |
144″ |
Minimum ceiling height |
12′ |
Low pad height |
4″ |
Maximum lift height |
71″ |
Width between columns |
116″ |
Drive thru width |
104″ |
Floor to overhead shutoff |
136″ |
Arm reach front |
23″ – 45″ |
Arm reach rear |
41″ – 57″ |
Maximum load per arm |
2,500 lbs |

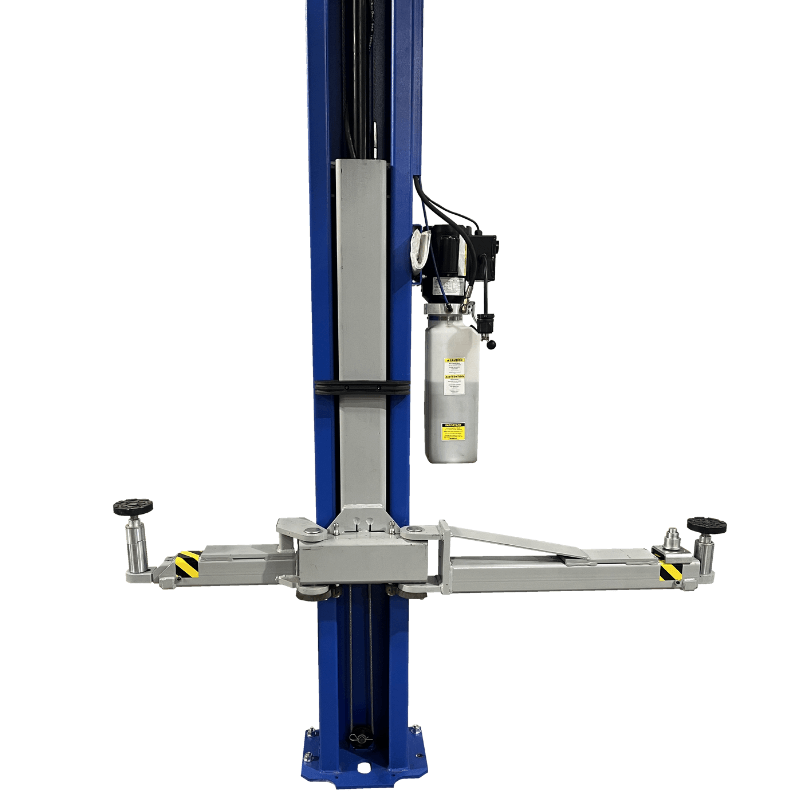

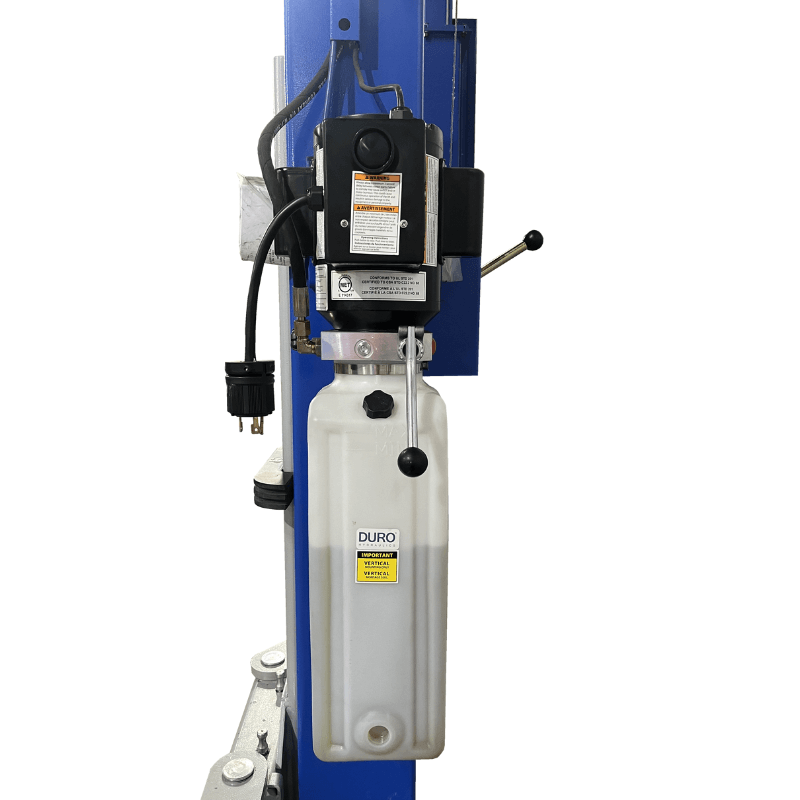

Electric power unit |
220VAC, 20 Amp, 1 Phase |
Rise speed |
50 seconds |
