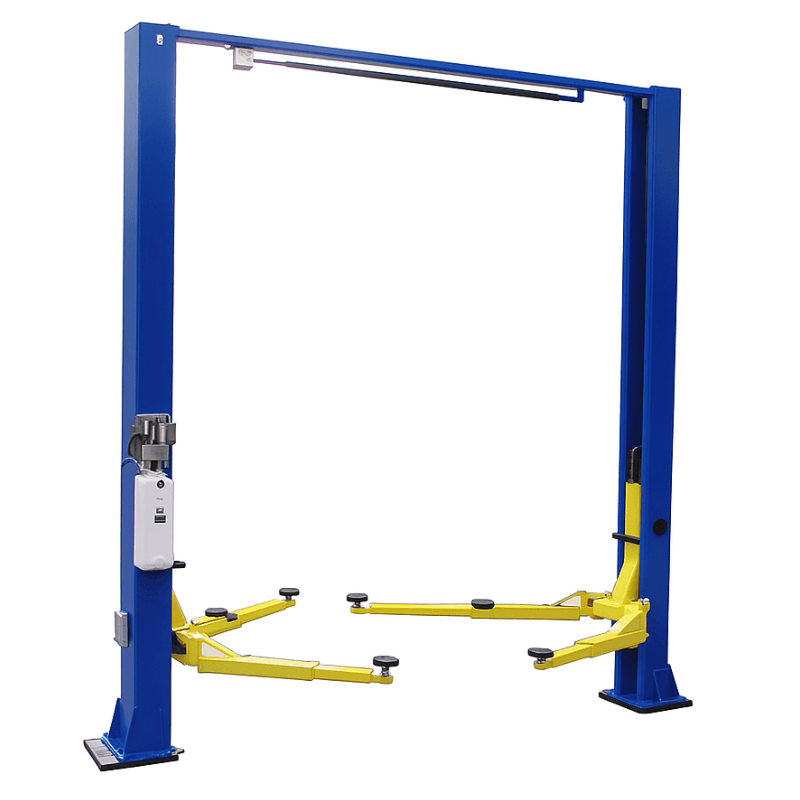

TP9KSCX, 9,000 lb 2 Post Car Lift Clear Floor - Symmetric
SKU: TP9KSCX
Tuxedo TP9KSCX 2 Post Car Lift Revolutionize your garage with the Tuxedo TP9KSCX Asymmetric Two-Post Lift. Designed to streamline your workflow, this lift offers unparalleled convenience and efficiency. Its asymmetric arms provide exceptional access to your vehicle's interior, making maintenance and repairs a breeze. With a robust 9,000 lb capacity, you can confidently lift a wide range of vehicles, from compact hatchbacks to full-size SUVs. The lift's single piece column ensures stability and durability, while features like rubber door guards and internal hose routing protect your vehicle and maintain a clean workspace.
Rated for 9,000 lb, it's suited to professional repair shops doing frequent underbody service, performance shops needing full access for suspension and exhaust work, and every unit ships backed by a manufacturer warranty and our team's support from checkout through delivery.
Key Features
9,000 lbs lifting capacity

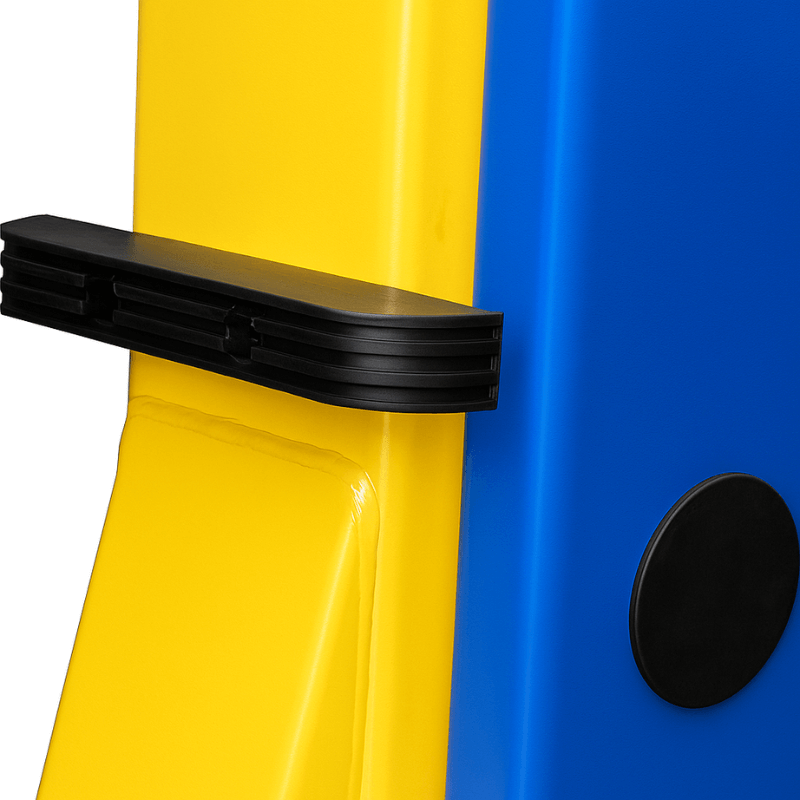

Rubber door guards to help protect vehicle finishes
Chain drive cylinders for reliable lifting performance
Dual point lock release system
Auto arm restraint system
Single piece column design for added strength
Internal hose routing for a cleaner and protected installation

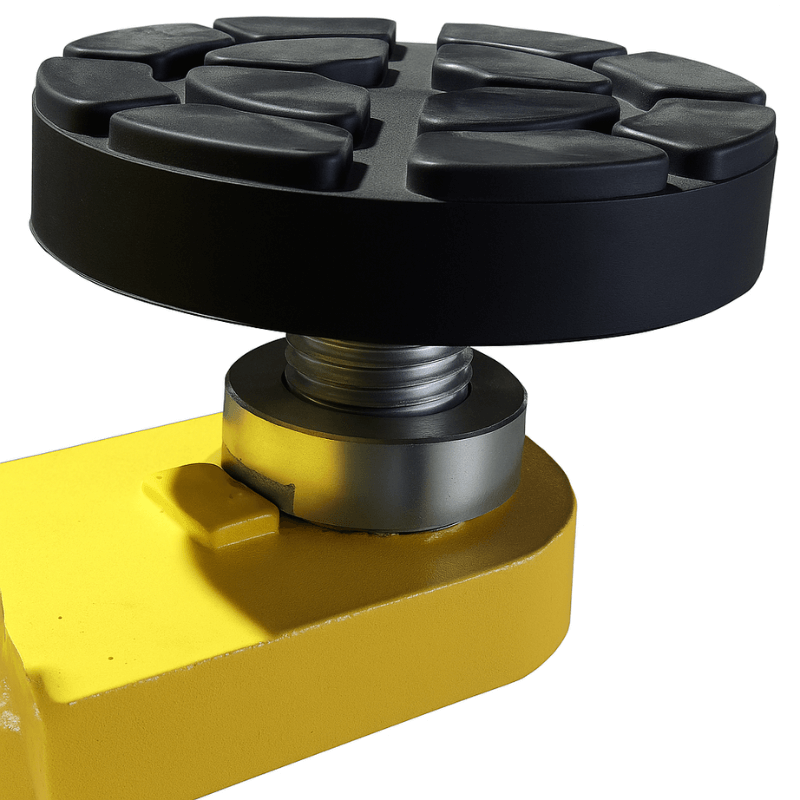

Low profile spin-up lift pads
Ideal For
Professional repair shops doing frequent underbody service
Performance shops needing full access for suspension and exhaust work
Home garages with limited floor space, since the floor stays clear
Fleet maintenance bays running high daily vehicle volume
Technical Specifications
Capacity |
9,000 lbs |
Height overall |
142-7/8″ |
Width overall with power unit |
138″ |
Maximum lift height |
72″ |
Width between columns |
113-5/8″ |
Minimum pad height |
4″ |
Drive-thru clearance |
96″ |
Lifting speed |
50 seconds |
Short arm reach (min/max) |
29″ – 41″ |
Long arm reach (min/max) |
37″ – 57″ |
Maximum load per arm |
2,250 lbs |
Concrete Requirements |
Minimum of 4.25"-3000psi |
Shipping weight |
1,370 lbs |
Power requirement |
220V, 20 AMP, Single phase |
Before you order
Freight, returns and installation, stated plainly.
Shipping & delivery
Free freight to the lower 48.
- Delivery
- LTL freight, curbside. The carrier calls to schedule; you move the crate from the curb.
- Alaska, Hawaii & territories
- Custom freight quote
Freight damage
Inspect at the curb, before you sign.
- At delivery
- Note any damage on the delivery receipt and take photos
- Report within
- 48 hours; we handle the carrier claim
Returns
30 days from delivery. No restocking fee.
- Condition
- Unused, in original condition, with a return authorization first
- Return freight
- Paid by the buyer unless the item arrived damaged, defective or not as ordered
- Refund
- To the original payment method after inspection
Installation help
Independent installers, arranged by quote.
- Coverage
- Many areas; we help you arrange one
- Price
- Quote-based
Manufacturer warranty on every product. Terms vary by brand and model. Ask for a free copy of the written warranty before you buy; we help you file claims.Warranty details
