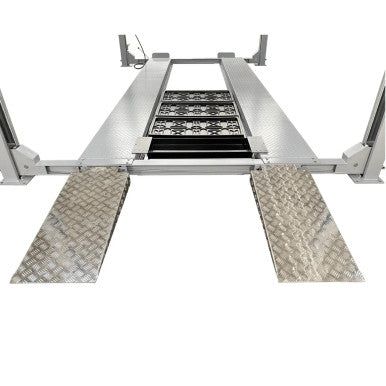

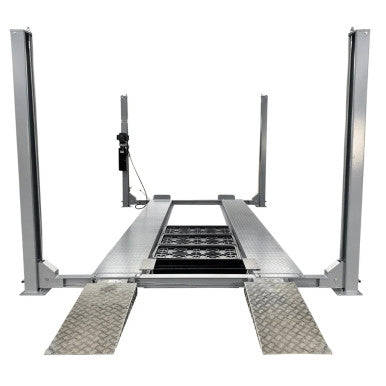

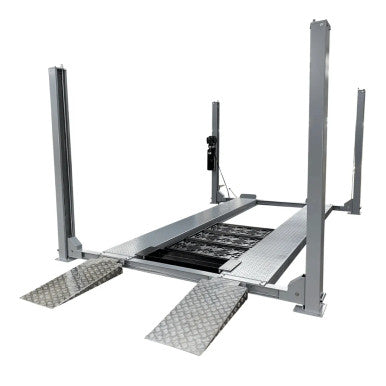

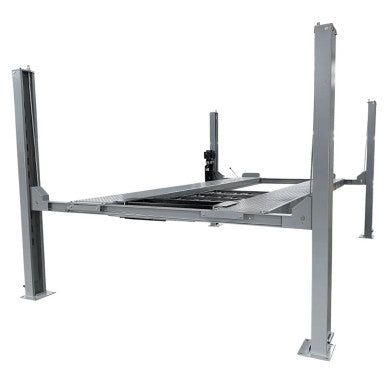

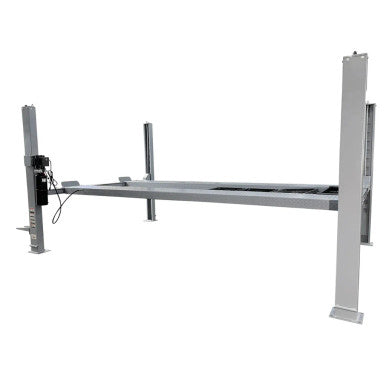

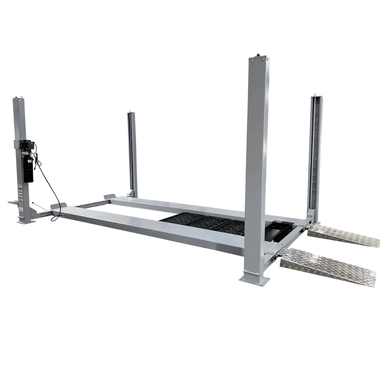

Triumph NSS-8 Four-Post Storage & Service Lift – 8,000 lb Capacity

The Triumph NSS-8 4 Post Car Lift is a testament to strength and adaptability, meticulously engineered to boost the efficiency and safety of vehicle maintenance and repair operations in both professional garages and home workshops. With its robust 8,000 lbs (approximately 3,628 kg) capacity, this versatile lift effortlessly accommodates a broad spectrum of vehicles, from compact sedans and coupes to larger SUVs and light trucks, making it an ideal choice for any automotive enthusiast or professional technician.

Crafted with unwavering attention to detail, the NSS-8 boasts an overall height of 84 inches and an overall length of 175 inches (without approach ramps), extending to 195 inches with ramps included. This thoughtful design ensures ample space for precise vehicle placement and comfortable servicing. The lift’s overall width of 106 inches, combined with a substantial lift height of 72 inches and a generous height of 69 inches under the runway, provides considerable clearance for comprehensive under-vehicle access. Its 165-inch runway length securely supports vehicles of various sizes, enhancing its operational flexibility.

Central to the NSS-8’s design are its user-focused features, including 10 distinct locking positions to accommodate a wide range of service heights and a convenient single-point lock release for straightforward, hassle-free operation. The lift achieves full elevation in a swift 40 seconds, significantly minimizing downtime and optimizing workshop throughput. Operating seamlessly on a standard 110-volt power supply, the NSS-8 offers easy installation in diverse settings without the need for specialized electrical configurations. Emphasizing safety and stability, the Triumph NSS-8 features a robust 12″ x 12″ base plate and a low lowered height of just 5 inches, facilitating effortless vehicle loading and unloading. The inclusion of approach ramps further amplifies its versatility, allowing for smooth drive-on and drive-off, which is particularly advantageous for vehicles with lower ground clearance.

Key Features

• 8,000 LB Capacity: Easily accommodates most cars, classic vehicles, and daily drivers.

• Perfect for Storage: Maximizes garage space by enabling stacked vehicle storage.

• Heavy-Duty Steel Construction: Built for superior strength and long-term durability.

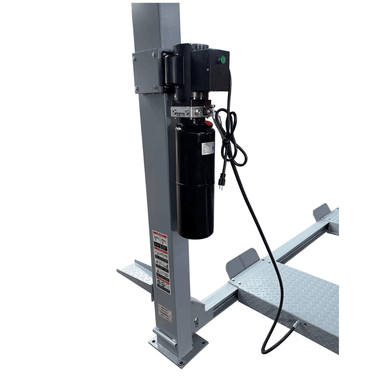

• Smooth Hydraulic Operation: Ensures easy and consistent lifting with a reliable hydraulic system.

• Safe & Secure: Features multiple safety locks and a mechanical safety system for secure positioning.

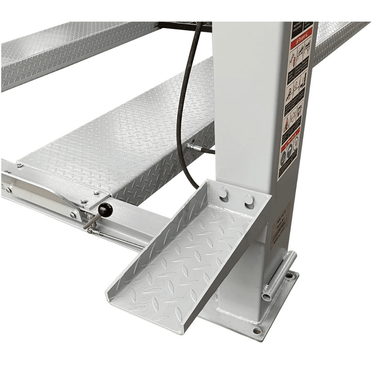

• User-Friendly Design: Drive-on ramps provide hassle-free vehicle access and precise positioning.

• Portable & Versatile: Includes caster wheels for convenient relocation within your garage or workspace (when lift is empty).

• 10 Locking Positions: Offers flexibility for various service heights.

• Single-Point Lock Release: Simplifies operation for enhanced user convenience.

• Fast Lift Time: Achieves full height in just 40 seconds.

• Standard 110V Power: Easy electrical compatibility for most settings.

• Robust Base Plate: Features a 12″ x 12″ base for excellent stability.

Ideal For

• Home garages and DIY automotive enthusiasts

• Professional auto shops and service centers

• Vehicle parking and storage space optimization

• Heavy-duty truck and commercial vehicle service

• Classic car restoration and collector garages

Technical Specifications
