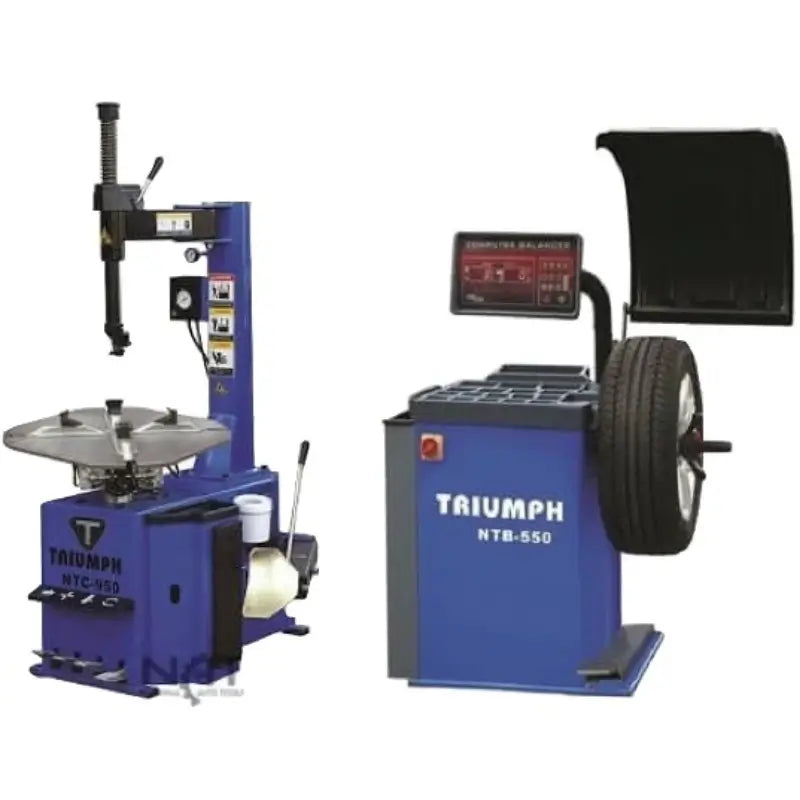

Triumph NTC-950 Tire Changer with NTB-550 Wheel Balancer Combo

The automotive landscape evolves rapidly, with an increasing variety of wheel and tire combinations. Shops equipped with inflexible, aging machinery find themselves outpaced by more agile competitors. The Triumph NTC-950 Tire Changer decimates these challenges. Its 5,500 lbs bead breaker force makes short work of even the toughest tires, while the bead blast system ensures precise seating every time. With a clamping range of 14-28 inches and capacity for tires up to 43 inches in diameter, it's ready for anything that rolls into your bay.

But the NTC-950 doesn't just solve today's problems—it anticipates tomorrow's. Start with the base unit and add helper arms as your business grows. This scalable solution transforms your tire service from a bottleneck into a profit center, positioning your shop as the go-to destination for fast, efficient, and professional tire changes.

Tire Changer NTC-950 and Wheel Balancer NTB-550 Triumph Specification

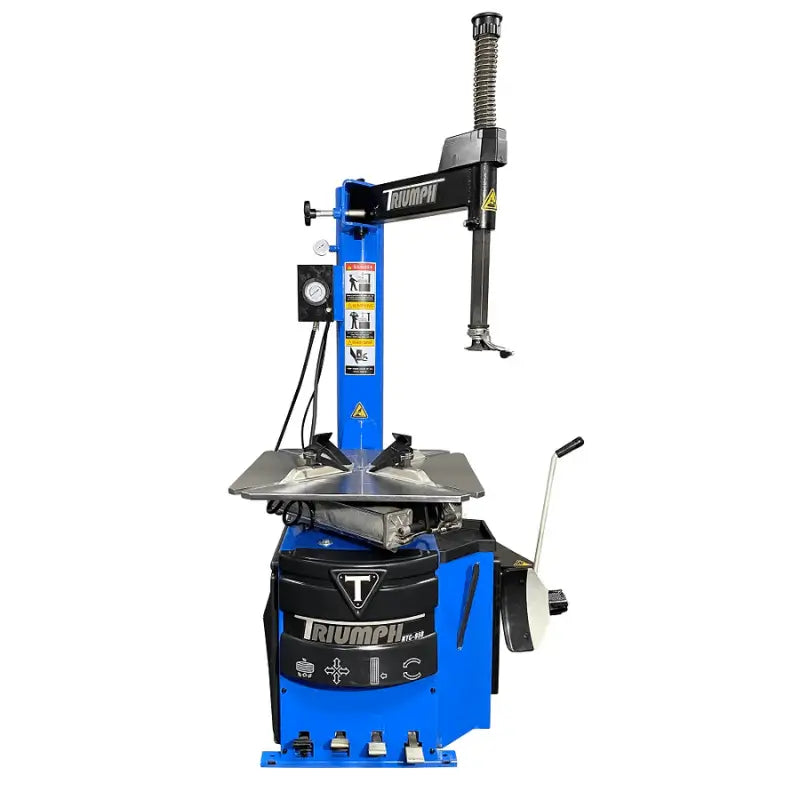

NTC-950

Inside Clamping: 16-28"

Outside Clamping: 14-26"

Max Wheel Width: 15"

Max Tire Diameter: 43"

Bead Breaker Force: 5,500 lbs

Max PSI: 120 PSI

Horsepower: 1.5 HP

Voltage: 110V

Assembled Size: 56x40x80"

Shipping Size: 51x38x51"

Shipping Weight: 700 lbs

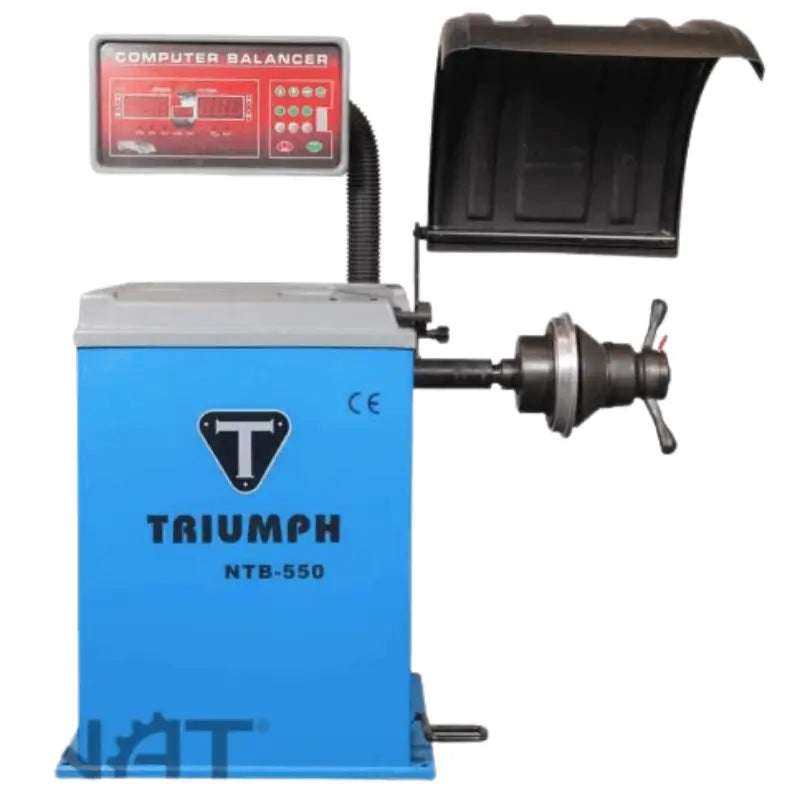

NTB-550

Wheel Size Range: 10-28"

Max Tire Diameter: 44"

Rim Width: 1.5-20"

Max Weight: 150 lbs

Shaft Size: 36 mm

Automatic Data Entry: No

Display: Standard or Metric

Accuracy: ±1 Gram

Cycle Time: 6-9 Sec

Horsepower: 1/4 HP

Voltage: 110 Volt

Assembled Size: 28x47x56"

Shipping Size: 36x28x46"

Shipping Weight: 325 lbs

Key Features

• Expandable Design: Start with a basic setup and add one or two helper arms as your business grows.

• Wide Clamping Range: Accommodates a variety of tires, from standard car tires to light truck tires.

• Bead Breaker: Delivers 5,500 lbs of force, making it easy to break even the toughest tire beads.

• Bead Blast System: Provides a powerful air burst to help seat the tire bead securely on the rim.

• High Capacity: Handles wheel widths up to 15" and tire diameters up to 43".

• Robust Motor: Equipped with a 1.5 HP motor for efficient operation.

• User-Friendly Power Requirements: Operates on a standard 110V power supply, making it easy to integrate into most shop environments.

• Compact and Manageable: The machine’s shipping size and weight make it easy to transport and install in your shop.

• Foot Pedal Wheel Brake: Holds the wheel securely in place for accurate weight placement.

• Versatile Balancing Modes: Includes static and dynamic balancing options.

• Alloy Capability: Designed to handle a variety of wheel types and sizes.

• Speed Nut and Self Calibration: Enhances ease of use and accuracy.

• Display Options: Provides measurements in grams or ounces, and millimeters or inches.

• Quick Cycle Time: Balances wheels efficiently with a cycle time of 6-9 seconds.

• Operator is required to enter in all 3 parameters (NTB-800 auto enters 2 parameters)

• 1 year warranty part only.

Ideal For

• Shops wanting a complete tire-service setup in one purchase

• Tire shops and dealerships handling daily tire service

• Auto repair centers adding wheel and tire work

• Home garages and serious DIY mechanics
